pfSense

Choose Your Hardware#

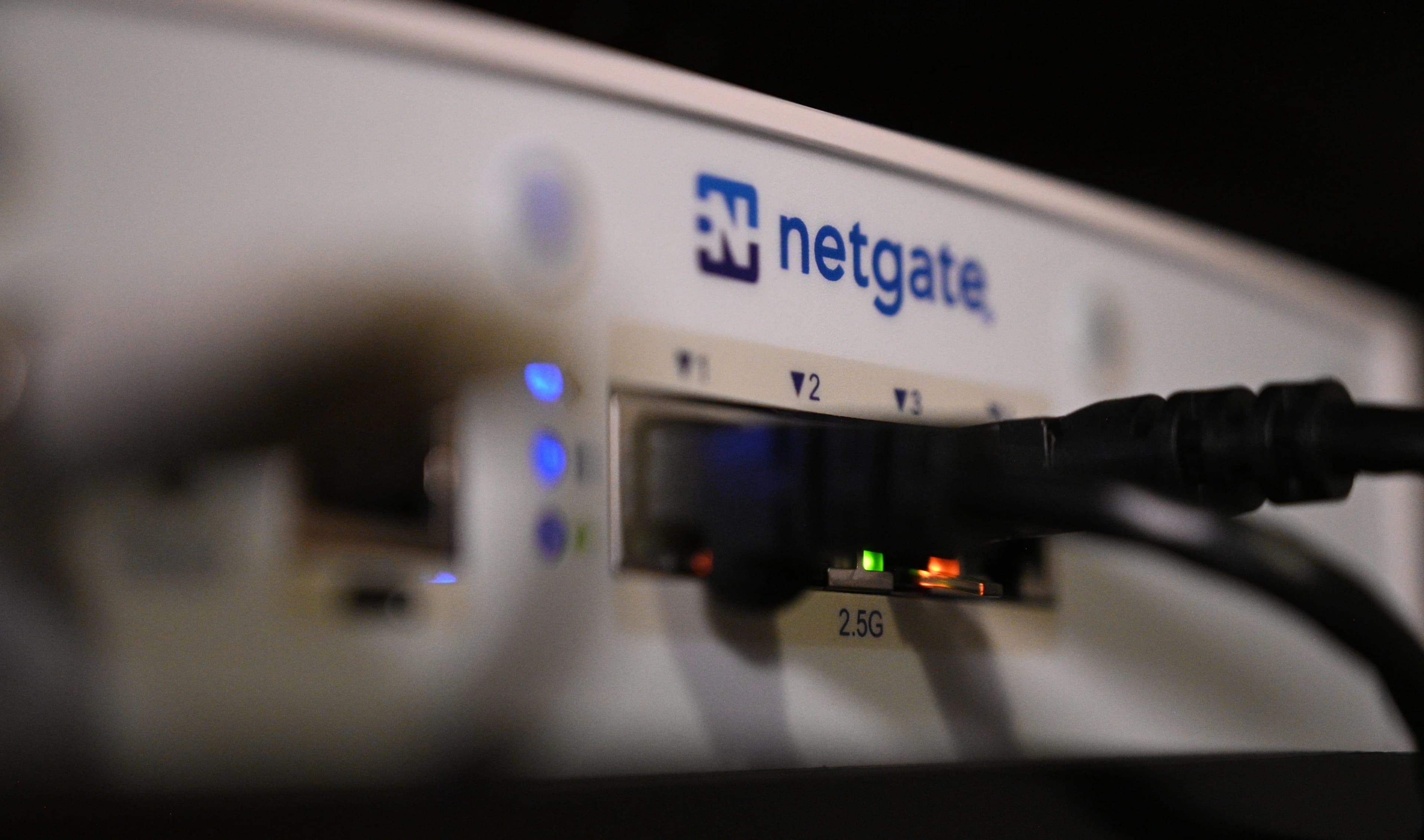

Why Netgate? Netgate is the official sponsor of the pfSense open-source project, so why not use their hardware? Sure, you could save some money by running pfSense on a less expensive (but not purpose-built) piece of hardware. This might be a good middle ground if your keeping a close eye on your budget, but still want extra ethernet interfaces.

You could save even more by running pfSense in a virtual machine on your Proxmox server, but part of the home lab experience is working with hardware. Plus, those extra ethernet interfaces on the Netgate appliance I'm suggesting (i.e., the Netgate 4200) will come in handy as your lab grows.

Update the Default Password#

This lab guide assumes that you've reviewed Netgate's "Getting Started" guide for the 4200 appliance and that you're able to access the adminstrative web interface. Once we're logged in using the default credentials of "admin" for the username and "pfsense" for the password, the first change to make to our Netgate (pfSense) firewall is to change the default administrator password to something more complex and, therefore, secure.

I suggest setting a much longer password (twelve or more characters) consisting of upper and lower case letters as well as numbers and symbols. Follow these steps from pfSense's documentation to change the default administrator password. Once that's taken care of, we'll start configuring pfSense to support our lab requirements.

Configuring Physical Interfaces#

Before we begin configuring our interfaces, it couldn't hurt to remind ourselves of what we're building by reviewing the network diagram that was shared in the "Gear Up" blog post that kicked off this series:

Now that we're ready, let's configure the Netgate appliance's physical interfaces one-by-one. Most of the configuration will be repetitive with only a few deviations along the way. At a high level, when configuring a physical interface, our first step will be to enable the interface. Next, we'll want to choose whether or not the interface will receive its IP address via Dynamic Host Configuration Protocol (DHCP) or if we will set the interface's IP address statically. For this exercise, we will always give our interfaces a static IP address. We then may or may not need to assign an upstream IPv4 gateway. That should pretty much cover it. Let's configure our first physical interface!

Port 1 — WAN Interface (igc3)#

Port 1/4 is our "WAN" interface and now is the time, if you haven't already, to physically connect it to an open interface on your internet modem or router in order to provide Internet access to our firewall and anything else downstream from it. By default, Port 1/4 should be configured to receive it's IP address assignment via Dynamic Host Configuration Protocol (DHCP); however, I suggest you set a static IP address on this interface if you can.

On my Amplifi home router, I have the ability to reserve a portion of the IP addresses issued from the router's DHCP pool for static IP address assignment. In my lab, I have configured my Amplifi router to reserve 192.168.132.1 through 192.168.132.99 for static IP address assignement, leaving 192.168.132.100 through 192.168.132.254 for DHCP to use on other devices—connected either wirelessly or hardwired to the Amplifi router. If your network requirements are different, then feel free to deviate from this guide to suit your needs. I will be setting a static IP address of 192.168.132.7 for my PORT1WAN interface.

Port 2 — LAN Interface (igc2)#

Port 2/4 is reserved for our "LAN" interface and should be configured out of the box with a static IP address of 192.168.1.1. For our lab purposes, this interface is our Netgate appliance's primary management interface and we will hardwire our computer to this port in order to manage our Netgate appliance. In a subsequent lab, we will configure secure remote management using Zscaler Private Access (ZPA).

Don't forget to assign your computer with a static IP address within the same subnet as the management interface (e.g., 192.168.1.2). You should know this already, though, since you've gone through the Netgate 4200 Getting Started guide and it's likely the interface you're connected to right now!

Port 3 — Lab Interface (igc1)#

Port 3/4 is our "Lab" network interface and it's arguably the most interesting network interface on our Netgate appliance. In a subequent post, we will physically connect our switch to this interface and that switch will connect the majority of our lab components to our lab. Furthermore, we will be configuring our lab switch with four Virtual Local Area Networks (VLANs) in order to virtually segment our physical switch into different virtual networks. What's more is that we will use pfSense to allow or deny traffic between those VLANs.

We will give this interface a static IP address and, so, we'll need a new subnet. To keep things easy, we'll choose 192.168.2.0/24 for our subnet and our IP address for this interface will be 192.168.2.1. Ensure the interface is enabled and save your changes.

Port 4 — Guest Interface (igc0)#

Port 4/4 is reserved for our "Guest" network interface. If you want, you could plug a wireless router into this interface, placing it behind your Netgate security appliance so that you could protect your guest WiFi users/devices with pfSense. If you're considering this, then don't forget to consider the security implications and how you might want to use pfSense to restrict traffic from this interface to our lab environment and vice versa. This is an optional step that is outside of the scope of this lab, but it should be simple enough to implement using the concepts you'll learn here and as we build out our home lab. For now, we'll leave this interface disabled.

Configuring Virtual Interfaces #

In a later lab, we'll map our VLANs to physical interfaces on our lab's switch. Then, we'll physically connect our switch to Port 3 on our Netgate appliance and we'll configure what's called a "trunk" port. Our trunk port will include all of our VLANs and it's effectively how we get our VLAN traffic passed between our pfSense firewall and our switch. We'll use our pfSense firewall to create routing and firewall rules to allow only the appropriate communications between VLANs. These communications are considered east/west traffic (as opposed to north/south traffic from/to our LAN to/from the Internet.)

So, all traffic from our switch goes up to our pfSense firewall where policy is applied and devices connected to the switch cannot communicate to one another without passing through the pfSense firewall. That said, now is a good time to configure our VLAN interfaces within pfSense. Feel free to use the IP addressing shared below if you'd like to keep your lab consistent with this guide:

• VLAN 01 — 192.168.5.1— Default VLAN
• VLAN 10 — 192.168.10.1— Services VLAN
• VLAN 20 — 192.168.20.1— Users VLAN
• VLAN 30 — 192.168.30.1— Storage VLAN
• VLAN 40 — 192.168.40.1— Management VLAN

VLAN 01 - Default VLAN - Interface #

The default VLAN on our HP switch is VLAN 1 which is common across networking manufacturers, but be sure to consult your switch's documentation. We configure the default VLAN interface by giving it a static IP addresses and checking the "enable interface" checkbox. In a later lab, when configuring our switch, we'll configure the opposite end of this connection when configuring the VLAN interfaces on our switch. In short, here we are creating VLANs, assigning VLANs to virtual interfaces, and giving those virtual interfaces an IP addresses so that they are reachable on the network.

VLAN 10 - Services VLAN - Interface#

The Services VLAN, which we can also refer to as "VLAN 10", is where our servers live. Let's enable this interface. Next, we'll decide on a subnet to reserve for the services VLAN. How about 192.168.10.0/24 for our Services VLAN IP addressing scheme? Next, let's take one of those IP addresses from the 192.168.10.0/24 network and assign it to our VLAN interface. For consistency's sake and to stay with convention, we'll use 192.168.10.1 for our Services VLAN inteface IP address assignment.

VLAN 20 - Users VLAN - Interface#

VLAN 20 is our users VLAN so we'll definitely want to enable this VLAN interface. We've reserved 192.168.20.0/24 for the Users VLAN. Therefore, we'll assign the Users VLAN (VLAN 20's) virtual interface an IP address of 192.168.20.1. Not much else to configure here, so, we'll save our changes and continue.

VLAN 30 - Storage VLAN - Interface#

We have a similar configuration for our Storage VLAN, VLAN 30. We'll use 192.168.30.0/24 for our IP addressing scheme for this VLAN and we'll assign this VLAN interface an IP address of 192.168.30.1.

VLAN 40 - Management VLAN - Interface#

And, as you could have guessed, we'll be configuring our management VLAN, VLAN 40, as we have the others. The subnet we'll reserve is 192.168.40.0/24 and we'll give this VLAN interface a predictable IP address of 192.168.40.1.

Aliases#

pfSense aliases make it easier to configure our firewall. Instead of having to remember and type out IP addresses and FQDNs, we can simply create aliases which reference those IP addresses and FQDNs which we can later select from dropdown menus as we configure pfSense. For instance, what if you need to change an IP address assigned to a resource that you have 10+ policies written for within pfSesnse. With aliases, updating an IP address requires only one corresponding update to the firewall-the alias. Without aliases, you'd have to locate and change that IP address in your policies across pfSense. This is obviously very prone to human error. Imagine how difficult managing your pfSense policies would be without aliases!

That said, and in preparation for deploying our Nginx web server, we'll configure an alias for our Nginx web server. We'll use this later when configuring policies to allow access to our website from outside our network (i.e., from the Internet). Don't forget to save your changes.

Example Alias Configuration

• Name: nginx_web_server
• Description: nginx web server
• Type: Host(s)
• IP or FQDN: 192.168.10.4
• Description: nginx web server

NAT for Nginx Web Server#

As is typical of a web server, our Nginx web server will be listening on port 80 and port 443, so we'll want to forward port 80 and port 443 to our Nginx web server. Using our new alias for our Nginx web server, we'll create a port-forwarding NAT policy to forward those ports. While we're creating that NAT policy, we're going to make sure to select "Add associated filter rule" under the "Filter rule association" field. Once we save our NAT policy, we should notice that pfSense created a firewall rule fore to allow that associated traffic to pass. Keep in mind that we'll also need to forward those ports on our home router (in my case, my Amplifi home router) so that we're not blocking those connections further upstream in our network. Please refer to the "Amplifi" blog post to review those steps.

NAT for DNS Resolver#

Another amazing capability built in to pfSense is its ability to act as both a DNS Forwarder or DNS Resolver. Having a DNS resolver give us more control over DNS by providing the ability to serve resources using easy-to-remember Fully Qualified Domain Names (FQDNs) instead of IP addresses. For example, which is easier to recall? The FQDN fw.krauscloud.com or the IP address 192.168.1.2?

With that in mind, we want to forward all DNS traffic on all interfaces (both physical and virtual) to our loopback address in order to use our Netgate appliance for DNS resolution.

Once in place, these NAT port-forwarding rules will redirect all DNS (port 53) requests from local clients destined to any external IP address. Those requests will be redirected to the Netgate appliance itself and, in the next section, we will configure pfSense to either resolve those requests or forward them to another DNS provider.

Configure DNS Resolver#

As was mentioned earlier, having a DNS resolver gives us more control over DNS such as the ability to serve resources using domain names instead of IP addresses. If you want to make life easier for yourself and your users, then having your own DNS Resolver is the way to go. We will configure a few “Host Overrides” which will effectively swap an IP address for a hostname. Since domain names are easier for humans to remember, this is a no-brainer.

With that in mind, you'll need to register your own domain because "krauscloud.com" is my domain. If you're looking for a registrar, I suggest Cloudflare for a few reasons one of which is that is who is used in a subsequent lab. Another important benefit of using Cloudflare is that they offer an free API as well as an integration with pfSense, both of which we will use when configuring Dynamic DNS to host our website locally.

Lastly, there is no need to add all of these host overrides at once. For example, if you do not plan on following the Zscaler Private Service Edge lab course, then there is no need to add a host override for it since it will not exist on your network. That said, let's add a host override for our Netgate appliance (pfSense), our Proxmox server (the MS-01), and our web server (Nginx).

Configuring Physical Interface Firewall Rules#

Phew! We are three quarters of the way through this lab and we're finally going to start configuring some firewall rules. OK, we got this!

The first thing to know is that the order of the rules matter. Rules are evaluated top to bottom, so be sure that you have your rules ordered properly or they might not work as expected. Typically, you have your more specific rules towards the top of the list and your more generalized rules towards the bottom of the list.

PORT1WAN - Firewall Rules#

For port 1/4, our WAN port, we want to ensure that our auto-generated rules were created when we configured our NAT policy for our Nginx web server earlier in this lab. If you don't see them listed, then you'll need to configure them manually. Also, if youd don't see them then be sure to double-check that you didn't skip the section titled, "NAT for Nginx Web Server".

PORT2LAN - Firewall Rules#

For interface 2/4, we will need a minimum of the first two rules in place. The first rule should already be created for you and we'll call this the “Anti-Lockout Rule”. This rule helps to ensure that you do not get locked out of your pfSense firewall should you make a misconfiguration. In the event that you make a misconfiguration, and you likely will, you should be able to make a wired connection to interface 2/4 to access the administrator portal to correct your mistake.

The second rule is to redirect DNS traffic to the firewall itself (it's loopback address) because, as was detailed in the prior step “Configure DNS Resolver”, we are using our Netgate appliance as a DNS resolver. Since I only have my Lab PC hardwired to this interface, I have set the source to the IP address of my Lab PC. The loopback address is the destination, and we're only concerned with port 53 (i.e., DNS) traffic.

The third and fourth rule are a bad idea for a production environment. They effectively let all IPv4 and IPv6 traffic from any subnets on interface 2/4 to go to any reachable destination on the network known to pfSense. Obviously, we would implement much more granular policies in our production networks; however, we won't have anything plugged in to this interface in our home lab, so, not only are the stakes low but the exposure is, too.

PORT3 - Firewall Rules#

At this point, there are no rules to configure on interface 3/4. The only rule required on this interface is the one that was created when we configured port forwarding on all interfaces for DNS Resolution (i.e., by selecting 'Add Associated Filter Rule').

PORT4 - Firewall Rules#

For now, this port is disabled, so, you shouldn't even see an option to configure firewall rules for this interface. In the future, consider enabling this interface and adding a wireless access point. You could then apply what you've learned in this lab and build out additional use cases with wireless devices (guest network, IoT/OT, etc.).

Configuring Virtual Interface Firewall Rules#

Let's do a quick VLAN recap. We've created our VLANs, assigned our VLANs to virtual interfaces, and issued those interfaces static IP addresses. Now, just as we have with our physical ports, we are going to configure firewall rules to either allow or block traffic between our VLANs based on our requirements. For example, we will eventually need to provide our lab PC (which is in our "Users VLAN 20") network access to resources such as our pfSense firewall and Proxmox server—both of which are part of our "Services VLAN 10".

VLAN 1 — Default VLAN — Firewall Rules#

No firewall rules need to be configured for the Default VLAN, but you should see at least one rule that was created in a prior step when we set up our NAT DNS redirect policy for the Default VLAN. If you don't see it, be sure to revisit "NAT DNS Resolver".

VLAN 10 — Services VLAN — Firewall Rules#

Just as before, we've already configured the DNS redirect rule when creating our NAT redirect policy; however, we need to configure three new firewall rules to allow specific traffic from our Nginx Web Server out of our network. In other words, when someone requests access to our website, we need to allow our web server to send a response back, that is, to serve up our website. These three allow rules will allow our Nginx web server access to any destination from any port so long as the destination port is port 53 (DNS), port 80 (HTTP), or port 443 (HTTPS).

VLAN 20 — Users VLAN — Firewall Rules#

Our first rule for the Users VLAN is to redirect all DNS traffic to the firewall for resolution. Since we've already configured that rule when creating the NAT redirect policy, that should already be created for us. Our second rule can be skipped for now, but it will come in handy when we implement a Zscaler Branch Connector in a future lab. The remaining four rules allow access from our lab PC to various applications and resources. We can set those rules up at a later date when we harden our firewall. For now, all you should have to do is create an "allow all" rule for your lab PC.

VLAN 30 — Storage VLAN — Firewall Rules#

We won't be configuring our Storage VLAN in this lab; however, if you'd like to take a sneak peek then feel free! In a future lab, we will cover not only implementing a Terramaster NAS, but providing secure remote access to it using our Zscaler App Connector—a component of Zscaler Private Access (ZPA). Using ZPA, we will be able to access our lab resources and applications securely from anywhere!

VLAN 40 — Management VLAN — Firewall Rules#

Again, our first rule for our Management VLAN was created when we set up our NAT redirect policy to support using pfSense as our DNS resolver.Next, we need to think about how we will use this Management VLAN. To be clear, the Management VLAN will be used to manage our network Switch and not our Firewall. You may recall that interface 2/4 is, effectively, our Management interface for our Netgate appliance. Just plug directly into that interface, make sure to assign your PC an available IP address within the subnet 192.168.1.0/24, and you can reach the pfSense administrator portal. That's great for our Netgate appliance, but how do we do the same for our switch?

We could just plug directly into our switch's management interface (8/10), but that would require us to physically disconnect and reconnect our wired connection. That will get old quick, so, instead we'll add our switch's Management VLAN to our trunk port and pass that traffic up to our pfSense firewall. Then, we'll write a policy in pfSense to allow traffic from our Lab PC to our Management VLAN interface. Once those rules are in place, then visiting 192.168.40.1 in my browser from my Lab PC should serve up our switch's administrator portal.

Conclusion#

Congratulations! At this point, you should have a working network for your home lab!! The only problem is, you don't have anything connected to it yet... We'll need more ethernet interfaces to connect more things to our home lab, so, in the next post, we'll add in a network switch and give it some VLANs! Once our switch is in place, we can start connecting things like servers, network attached storage (NAS), and even wireless access points to scale our network wirelessly.
